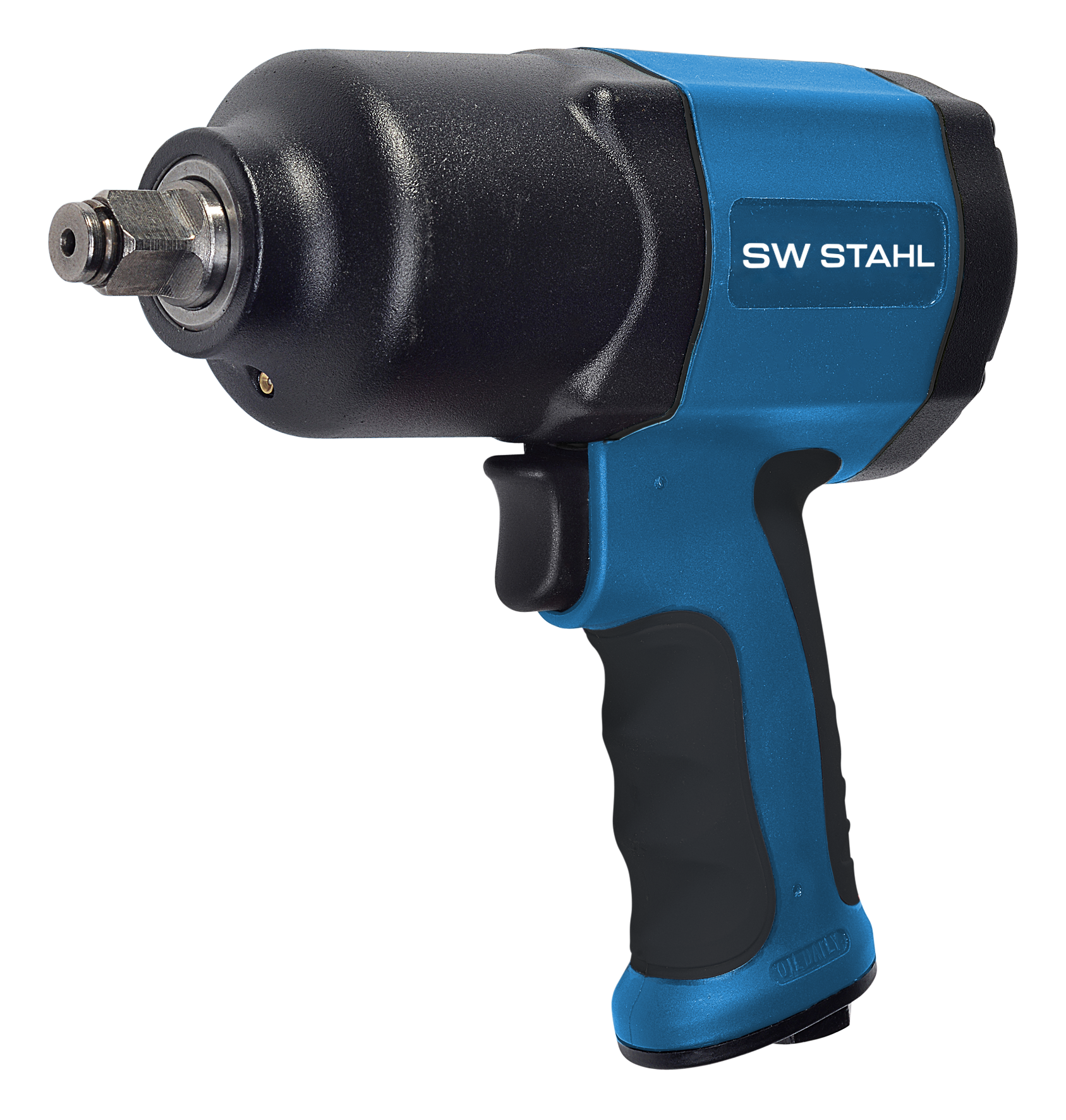

Pneumatic IMPACT wrench, 1/2", 1,450 Nm


Item no.: S3269
EAN: 4033592136167

Information about the product

Description

12.5 mm (1/2”) drive.

  • High performance twin hammer mechanism
  • Fatigue-proof work due to low net weight
  • Single handed switching for clockwise/anticlockwise running
  • Very low vibration
  • Threefold torque selection
  • With non-slip handle
  • 1/4” inlet nipple included

Technical data

Abtriebs-Vierkant [mm] 12,5 (1/2")
Release Torque [Nm] 1450
Baulänge [mm] 185
Luftverbrauch [l/m] 170
Drehmoment Max. [Nm] 1000
Max. torque, 1. speed [Nm] 490
Max. Torque, 2nd speed 660
Max. Torque, 3rd speed 870
Service Speed [1/min] 8500
Operating Pressure [bar] 6.30000
Thread Size, compressed air connection 1/4"
Noise Level [dB] 90
Sound Power Level [dB] 101
Vibration Acceleration [m/s²] 6.80000
Weight [kg] 2.10000

More images

Detailed images

Application images

Spare and wear parts

Item no. variant Name
S3246-1 - Retaining ring for all, 1/2”
