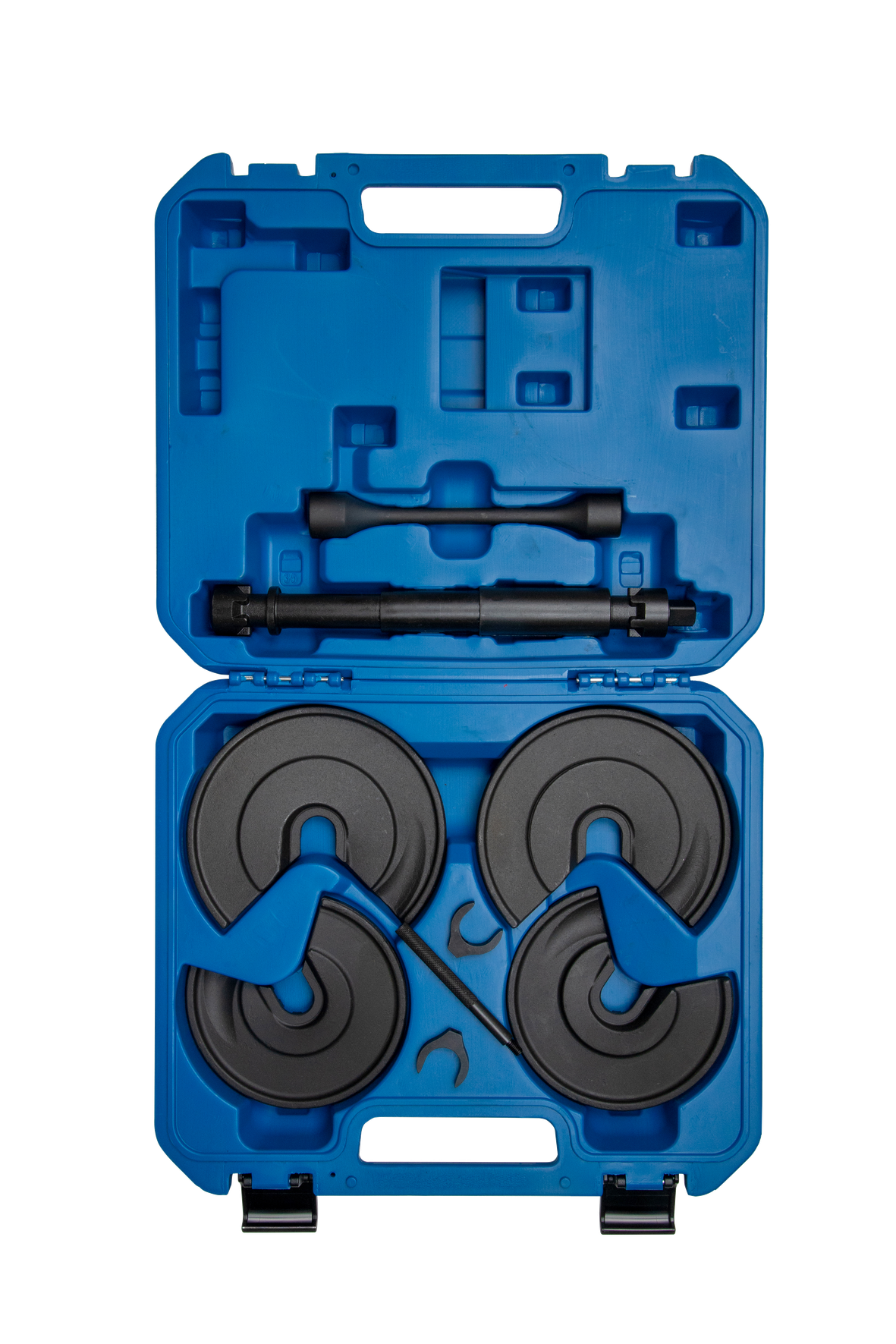

Telescopic spring tensioner, VAG, 9-piece

Item no.: 10212L
EAN: 4033592138253

Information about the product


The newly designed telescopic spring tensioner from SW-Stahl is especially designed for vehicles with very small access holes, such as those found at VW and Audi.
Particularly in four-wheel drive vehicles on the rear axle, the space is very cramped, here the proven system attacks the spring from the inside to grasp and squeeze.

Technical specifications:

  • Two pairs of spring plates for springs with a diameter of 75-140 mm
  • Span of 95-220 mm
  • Clamping force max. 1,600 kg


  • Additional, second safeguard against unintentional unscrewing of the spring plate
  • For particularly small access holes, min. 30 mm diameter
  • New, safe intake of the spring plates
  • Overload protection by means of torsion bar
  • No impact of the spindle on the body
  • Remove the spring without disassembling the axle

Technical data

Currently no technical data is available for this item. In case of questions please contact us.
Please contact us here.

More images

Detailed images

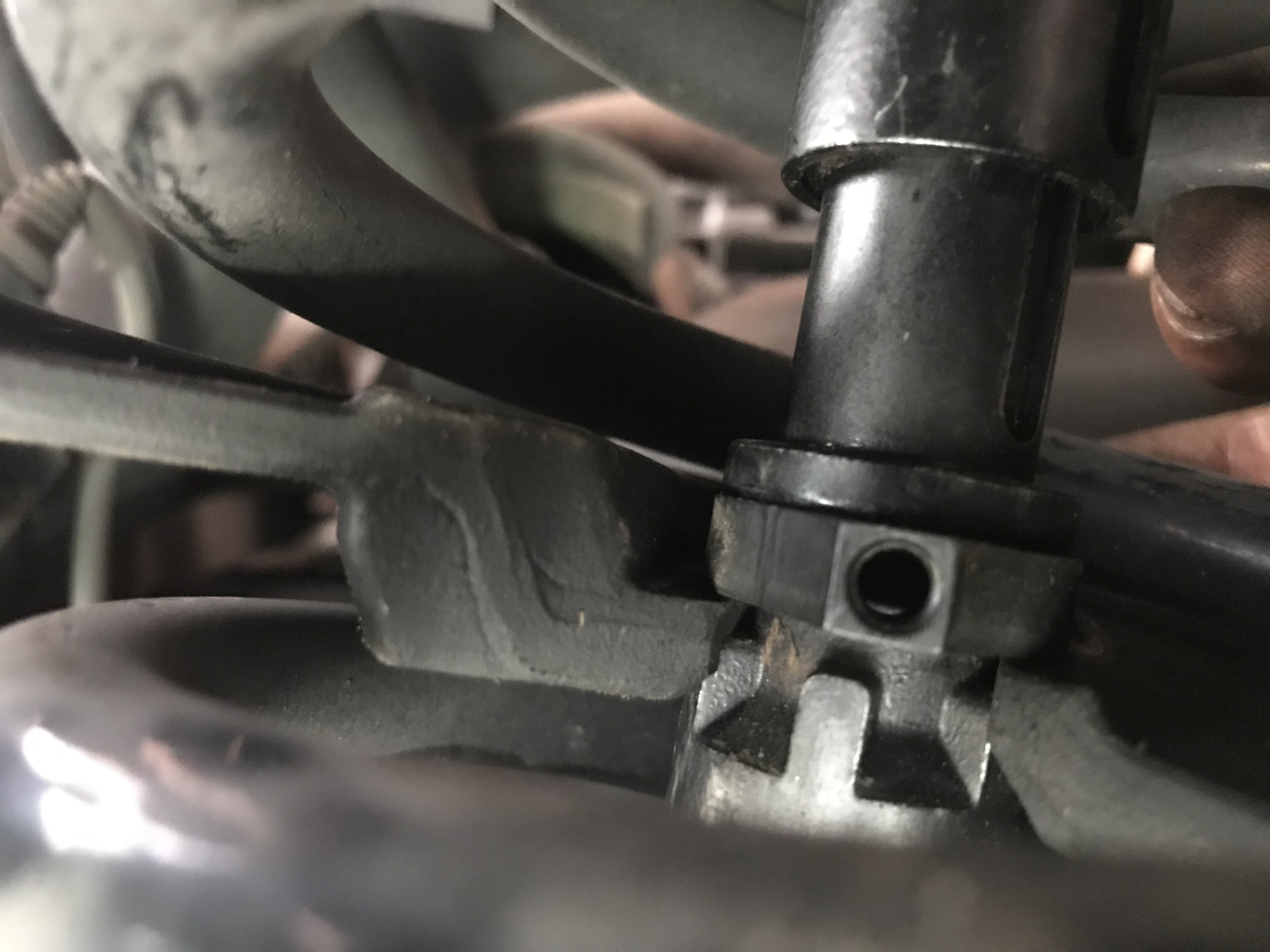

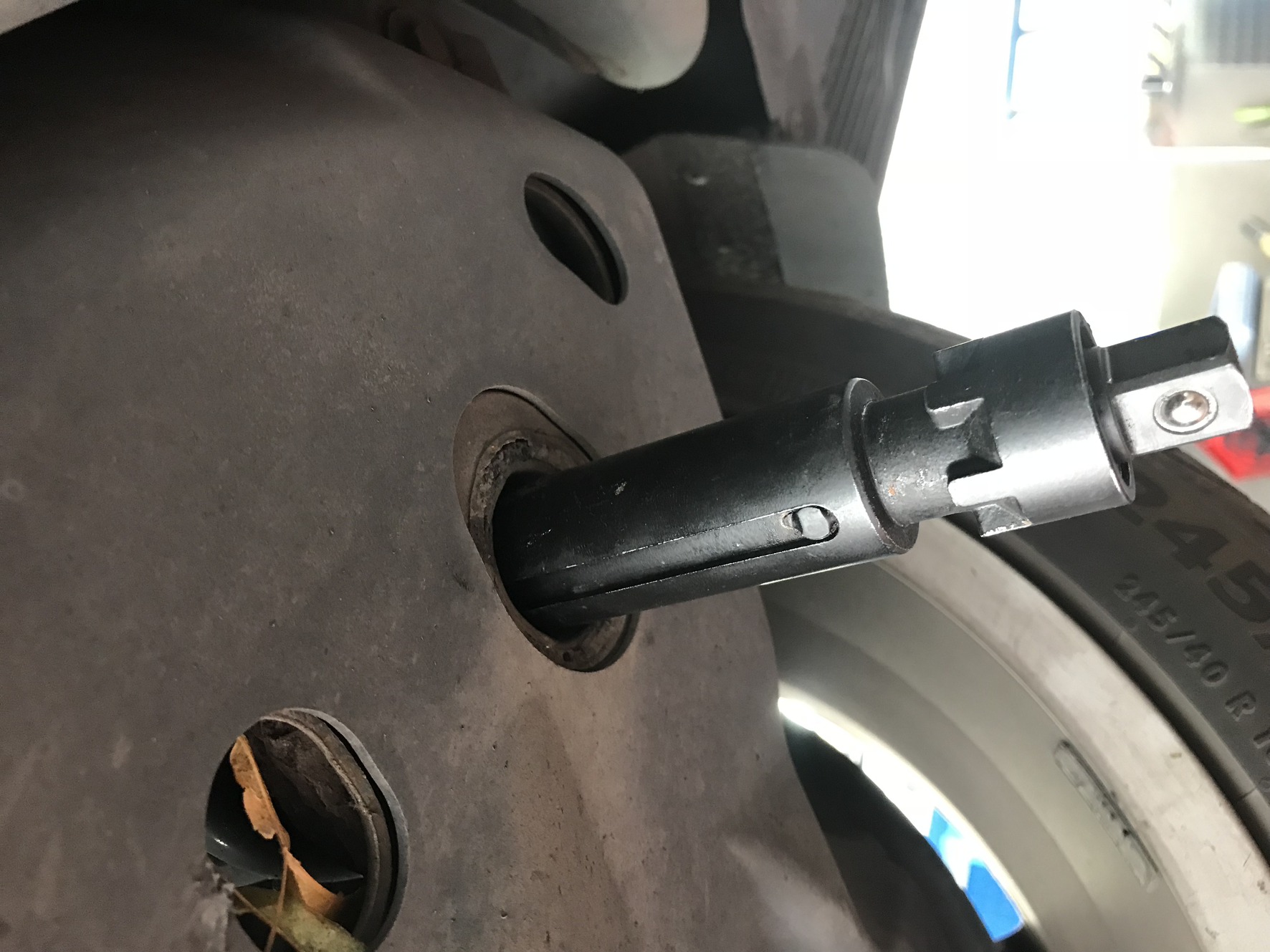

Application images

Spare and wear parts

Item no. variant Name
10212L-SP - Spindle
