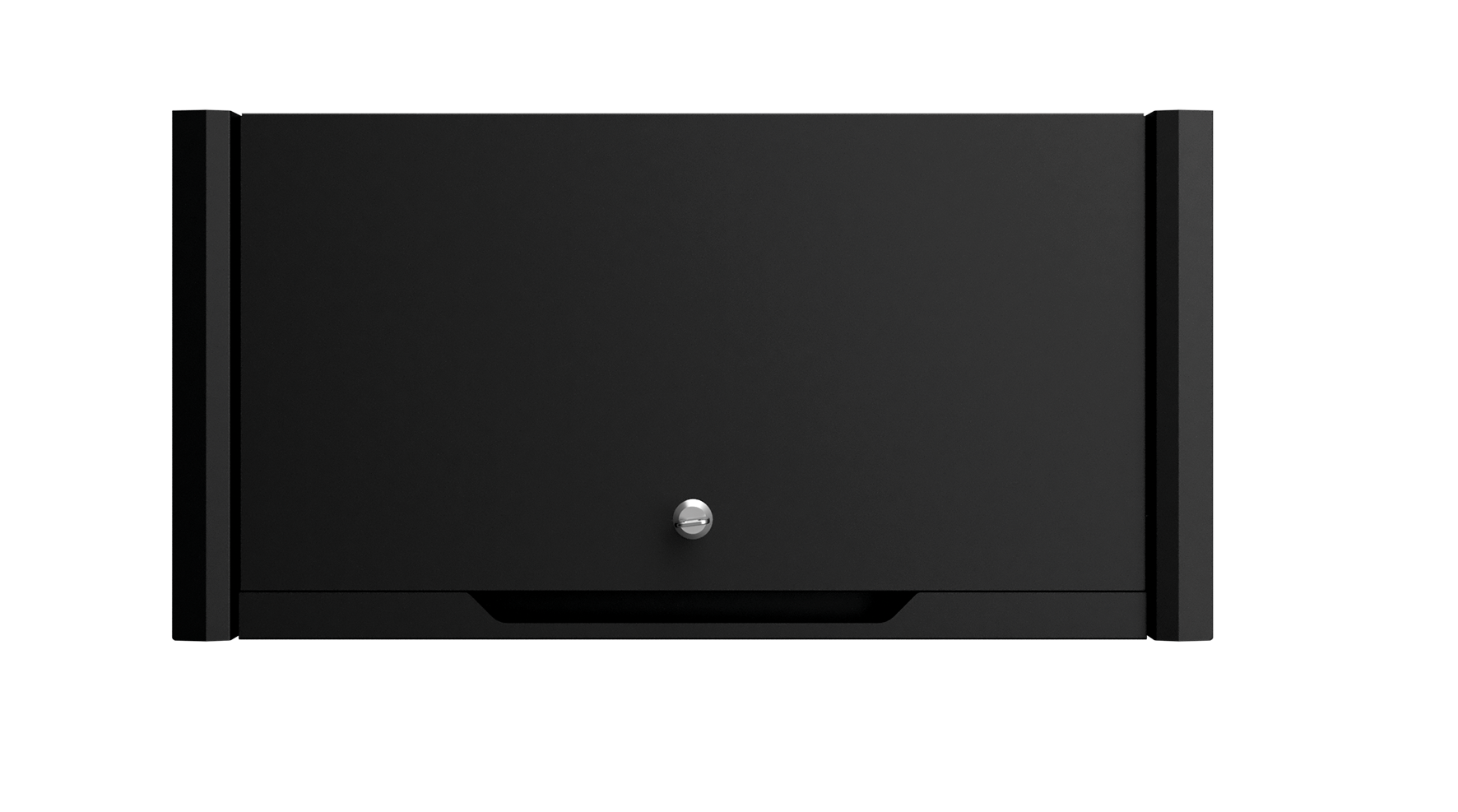

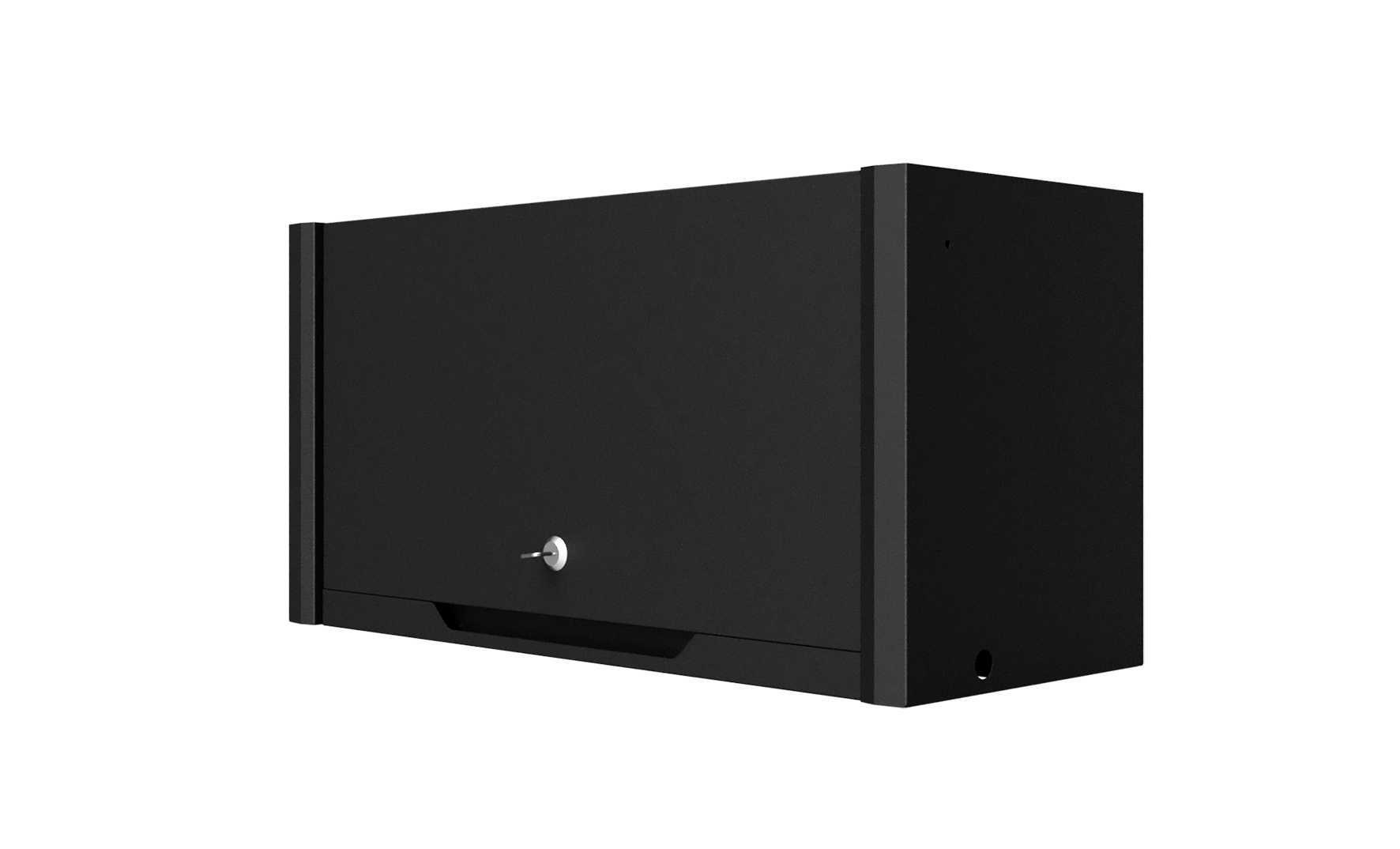

Wall cupboard basic


Item no.: 083601
EAN: 4033592151771

Information about the product

Description

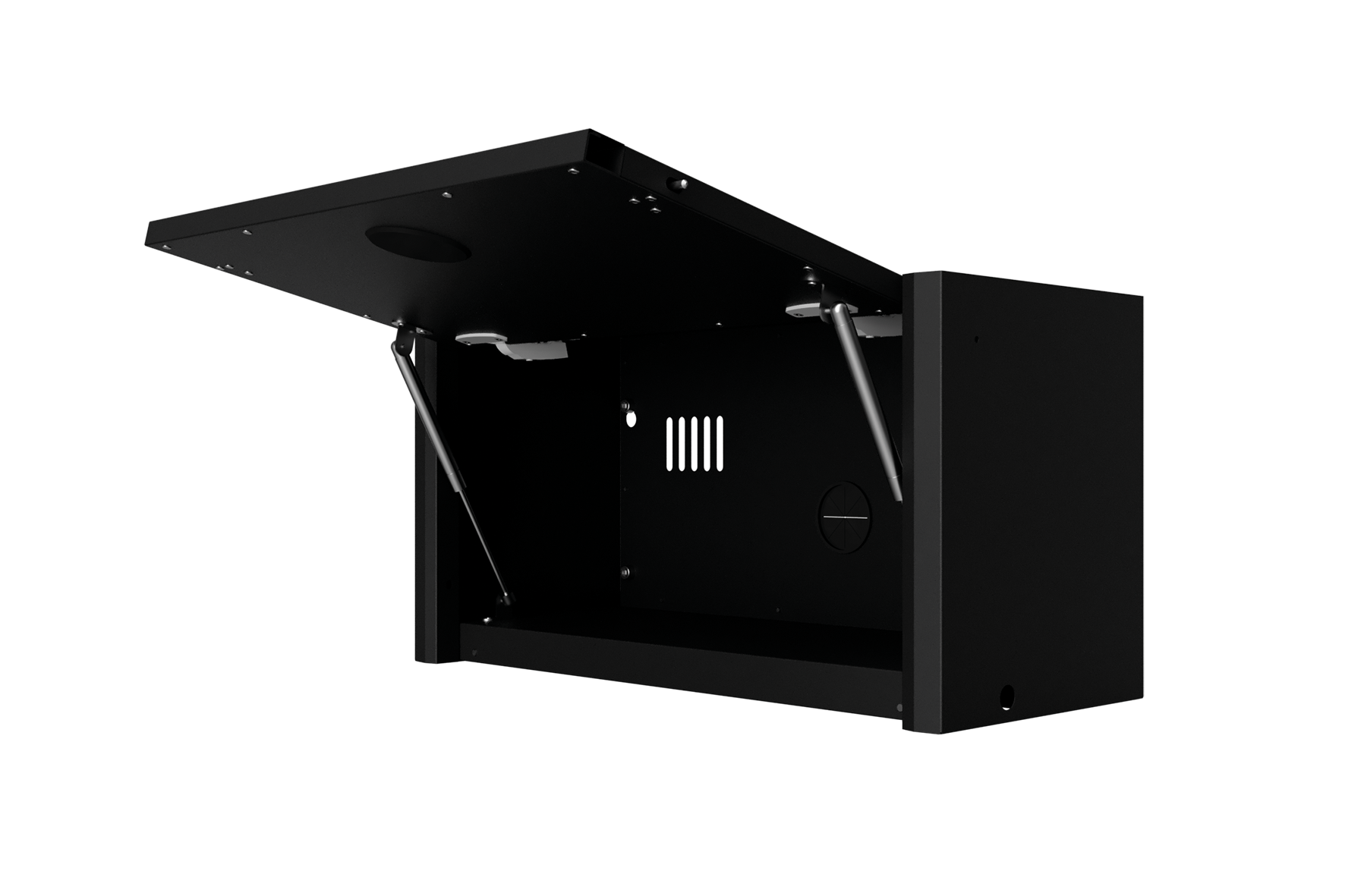

  • Flap with gas strut and automatic hinge, opening angle 100°
  • Smooth, silent opening and closing
  • Design handle bar, ergonomically optimised
  • Automatic hinges with integrated damping
  • Double-walled flap with elastomer-mounted locking mechanism
  • Stops with rubber buffers
  • Design carcase with compartment for LED panel lighting and compartment for transformer
  • Cable feed-throughs at the rear of the enclosure Ventilation at the rear of the enclosure
  • Force-free assembly by hooking into rear panels and subsequent fixing

Technical data

Weight [kg] 12.30000
Height [mm] 688
Width [mm] 350
Depth [mm] 287

More images

Detailed images

Application images

Spare and wear parts

Item no. variant Name
085054 - Hinge overlay 2 pcs.
085055 - Lock 90° with key 601
