Workshop crane, 1,000 kg


Item no.: 20310L
EAN: 4033592073394


Information about the product

Description

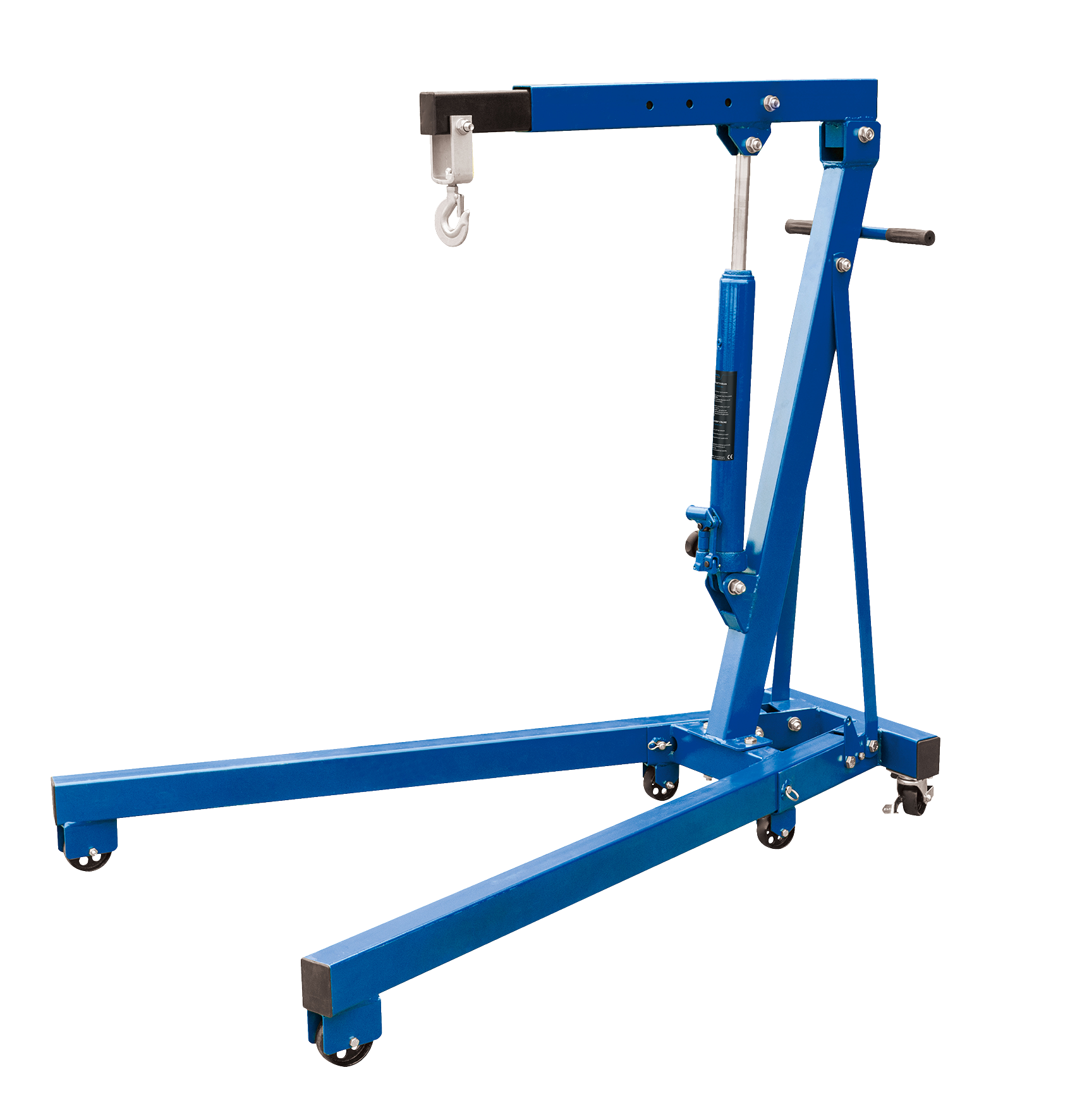

Multi-purpose workshop crane for weights of up to 1,000 kg.
The crane arm is adjustable in length and has a chain with safety hook. The 2 moving casters ensure maximum flexibility even under load. Space-saving storage thanks to fold-away supports.

Technical data:

  • Max. lifting capacity: 250 - 1,000 kg
  • Max. lifting arm length: 902 - 1,169 mm
  • Max. lifting height: 2,019 - 2,248 mm
  • Lifting cylinder with safety valve

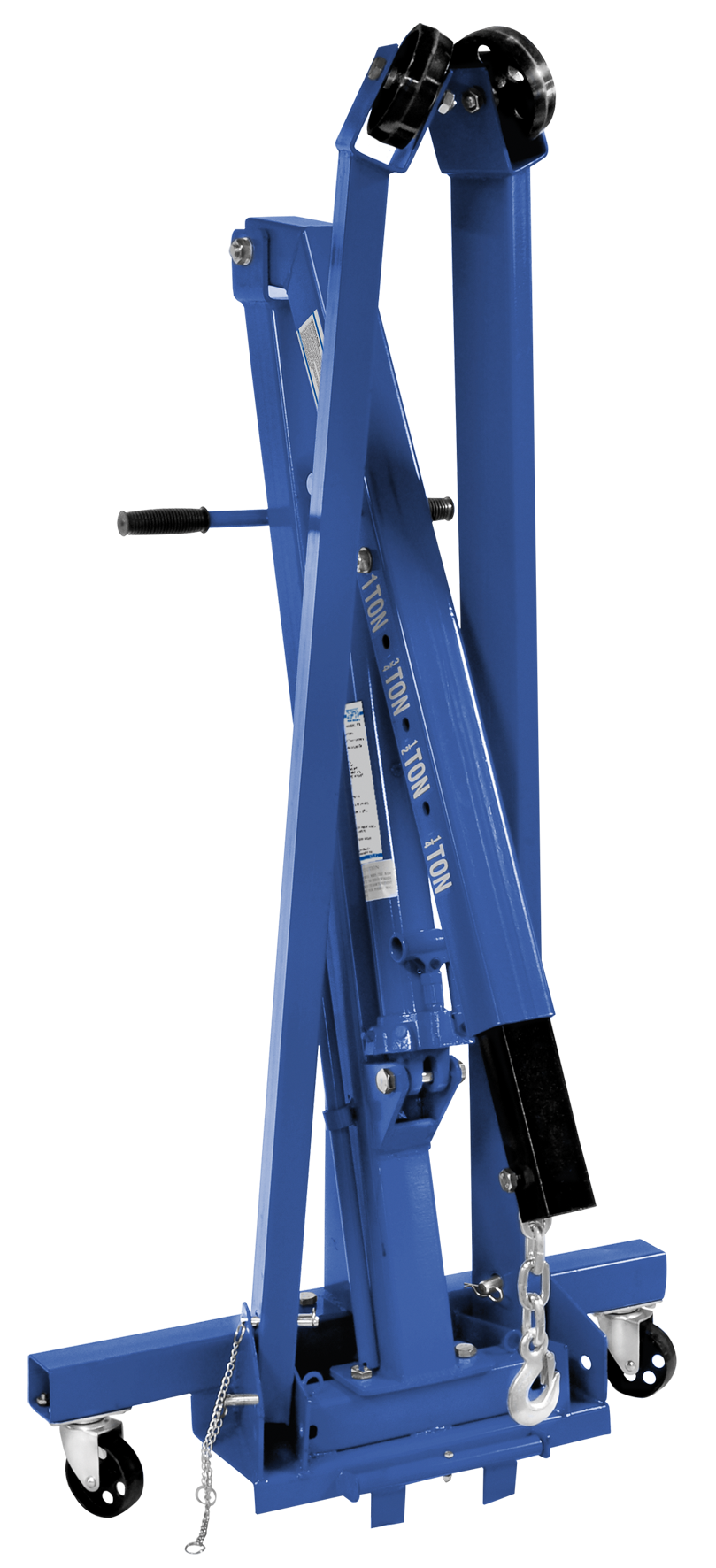

  • Can be folded away for space-saving storage and transport, can be completely dismantled if necessary
  • 2 casters, 2 fixed wheels made of steel
  • Including chain with safety hook


Dimensions when folded (LxWxH) 600 x 790 x 1,560 mm
Height of the frame 160 mm
Base frame (LxW) 1,570 x 850 mm

Technical data

Weight 70 kg
Product quality Industrial / Professional
Carrying capacity 1000 kg

More images

Detailed images

Application images

Spare and wear parts

Item no. variant Name
20310L-C - Hydraulic cylinder, 3 t
