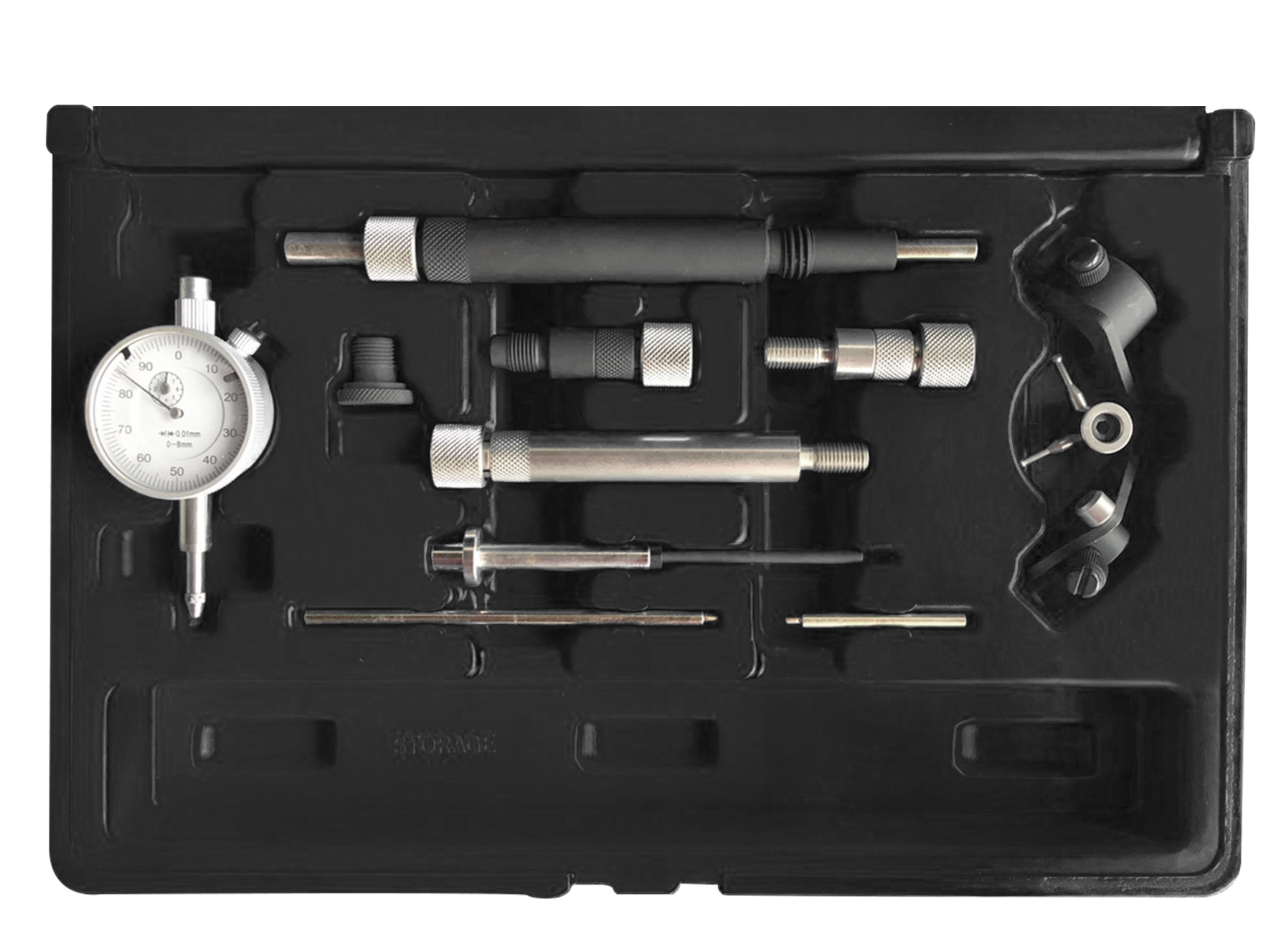

Diesel special tool set, 0-5 mm, 10-piece

for the termination of the start of production

Item no.: 26060L
EAN: 4033592022859

Including pivoted gauge holder!


Information about the product

Description

for testing and setting the engine control and start of delivery on injection pumps.
Setting values and operating instructions included.

Suitable for:

  • Bosch EP/VE, Rotory, Kikki, Nippon, Lucas, CAV, Roto
  • Depth gauge 0 - 5 mm

Technical data

Anzahl Werkzeuge 10.0
Kraftstoffart Diesel
Produktqualität Premium
Gewicht [kg] 1.025
Verpackung Kunststoffkassette

Vehicle types

Vehicle type Year of manufacture (MM/YY)
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 SDI 07/96 bis 07/06
Select vehicle
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI 05/01 bis 07/06
Select vehicle
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI 05/99 bis 07/06
Select vehicle
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI 05/01 bis 07/06
Select vehicle
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI 05/99 bis 07/06
Select vehicle
VW LT 28-46 II Kasten (2DA, 2DD, 2DH) 2.5 SDI 09/96 bis 07/06
Select vehicle
VW LT 28-46 II Kasten (2DA, 2DD, 2DH) 2.5 TDI 05/01 bis 07/06
Select vehicle
VW LT 28-46 II Kasten (2DA, 2DD, 2DH) 2.5 TDI 05/99 bis 07/06
Select vehicle
VW LT 28-46 II Kasten (2DA, 2DD, 2DH) 2.5 TDI 05/01 bis 07/06
Select vehicle
VW LT 28-46 II Kasten (2DA, 2DD, 2DH) 2.5 TDI 05/99 bis 07/06
Select vehicle
VW LT 28-46 II Pritsche/Fahrgestell (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 SDI 09/96 bis 07/06
Select vehicle
VW LT 28-46 II Pritsche/Fahrgestell (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI 05/01 bis 07/06
Select vehicle
VW LT 28-46 II Pritsche/Fahrgestell (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI 05/99 bis 07/06
Select vehicle
VW LT 28-46 II Pritsche/Fahrgestell (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI 05/01 bis 07/06
Select vehicle
VW LT 28-46 II Pritsche/Fahrgestell (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI 05/99 bis 07/06
Select vehicle
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI 05/98 bis 04/03
Select vehicle
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI 09/95 bis 04/03
Select vehicle
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI Syncro 01/96 bis 04/03
Select vehicle
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI 05/98 bis 04/03
Select vehicle
VW TRANSPORTER T4 Kasten (70A, 70H, 7DA, 7DH) 2.5 TDI 12/98 bis 04/03
Select vehicle
VW TRANSPORTER T4 Kasten (70A, 70H, 7DA, 7DH) 2.5 TDI 09/95 bis 04/03
Select vehicle
VW TRANSPORTER T4 Kasten (70A, 70H, 7DA, 7DH) 2.5 TDI Syncro 09/95 bis 04/03
Select vehicle
VW TRANSPORTER T4 Kasten (70A, 70H, 7DA, 7DH) 2.5 TDI 09/00 bis 04/03
Select vehicle
VW TRANSPORTER T4 Pritsche/Fahrgestell (70E, 70L, 70M, 7DE, 7DL 2.5 TDI 05/98 bis 04/03
Select vehicle
VW TRANSPORTER T4 Pritsche/Fahrgestell (70E, 70L, 70M, 7DE, 7DL 2.5 TDI 09/95 bis 04/03
Select vehicle
VW TRANSPORTER T4 Pritsche/Fahrgestell (70E, 70L, 70M, 7DE, 7DL 2.5 TDI Syncro 05/98 bis 04/03
Select vehicle

Motor code

Motor code ccm kW PS Year of manufacture (MM/YY)
ACV 2,461 75 102
AGX 2,461 55 75 ab 07/96
AHY 2,461 111 151
AJT 2,461 65 88
ANJ 2,461 80 109
APA 2,461 66 90
AUF 2,461 75 102
AVR 2,461 80 109
AXG 2,461 111 151
AXL 2,461 75 102
AYC 2,461 75 102
AYY 2,461 65 88
BBE 2,461 61 83
BBF 2,461 70 95

Scope of delivery

Item no. variant Name Quantity
26067L - Precision gauge 1
26063L - Gauge holder for 25060L 1
26064L - Sensor for gauge 25060L 1

Accessories

Item no. variant Name
26059L-3 - Injector pump retainer pin, 15,4 mm
