Engine support crossmember, max. 250 kg

Item no.: 26597L
EAN: 4033592103497

Not to be used with pneumatic screwdrivers!

Information about the product

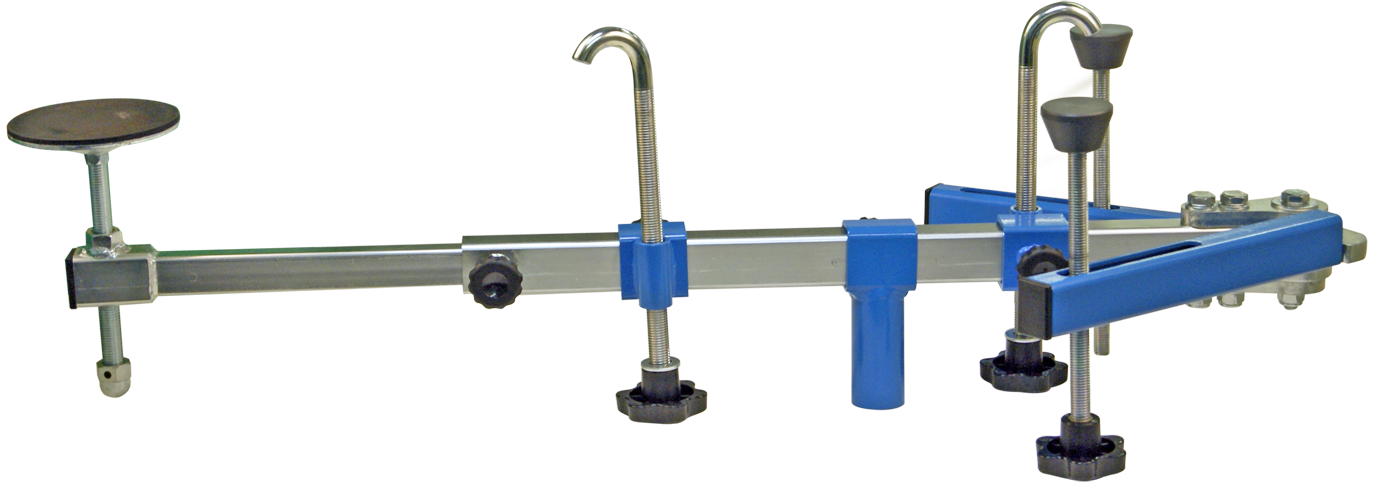

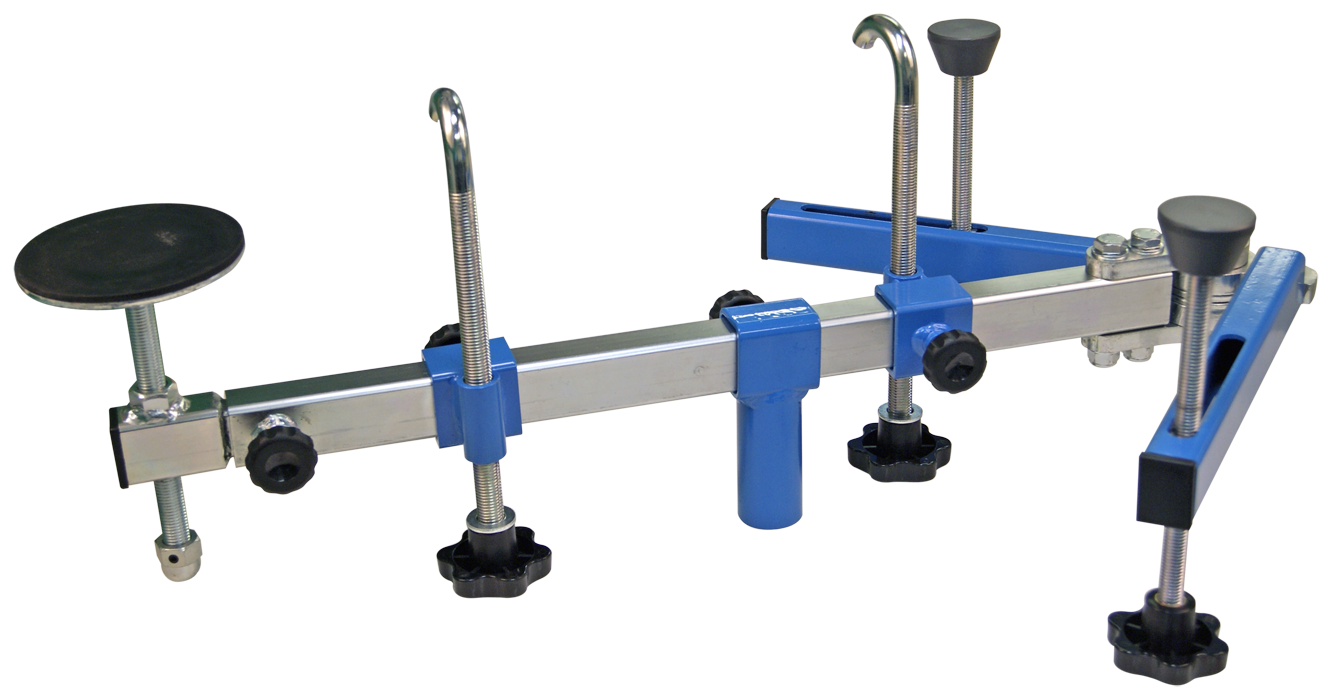

The universal engine support tie-bar securely holds the engine from below as soon as the side engine bearings are dismantled. The usual engine bridge is no longer required. When working on the toothed belt, water pump or auxiliary drive, a free access from above is now possible.

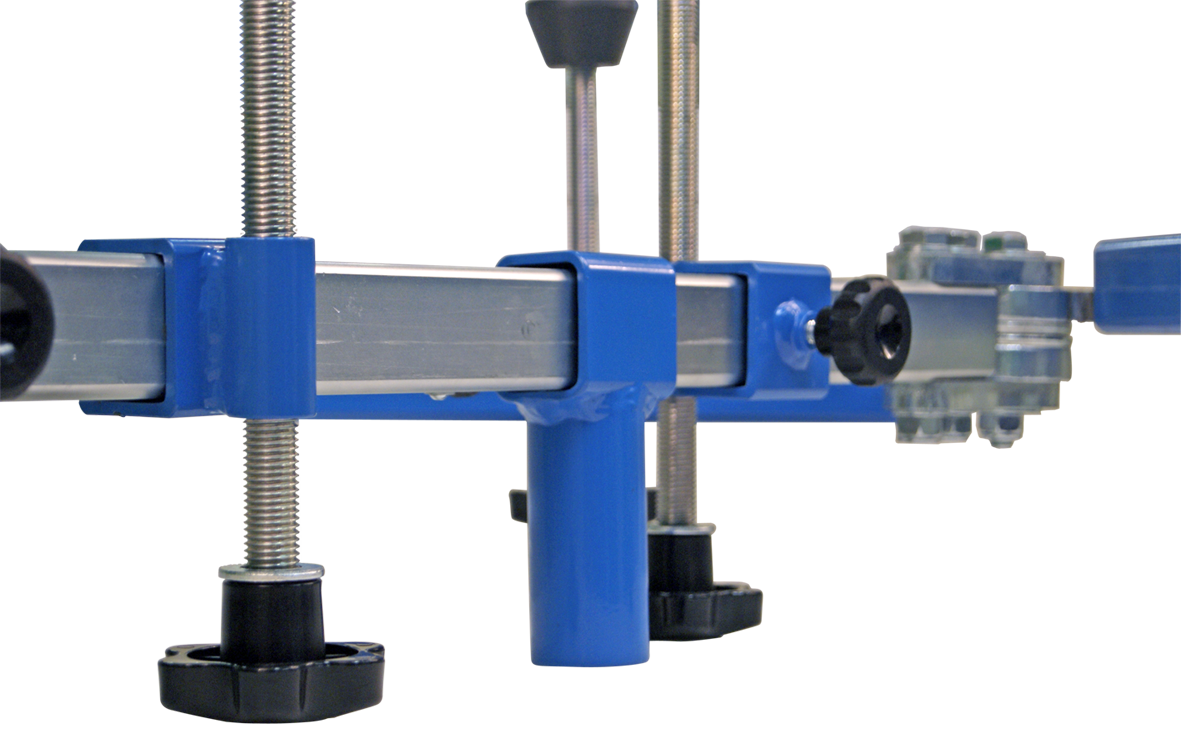

  • The two adjustable mounting hooks securely hold the motor support beam at the vehicle floor.
  • Height-adjustable support plate for targeted lowering or lifting of the motor.

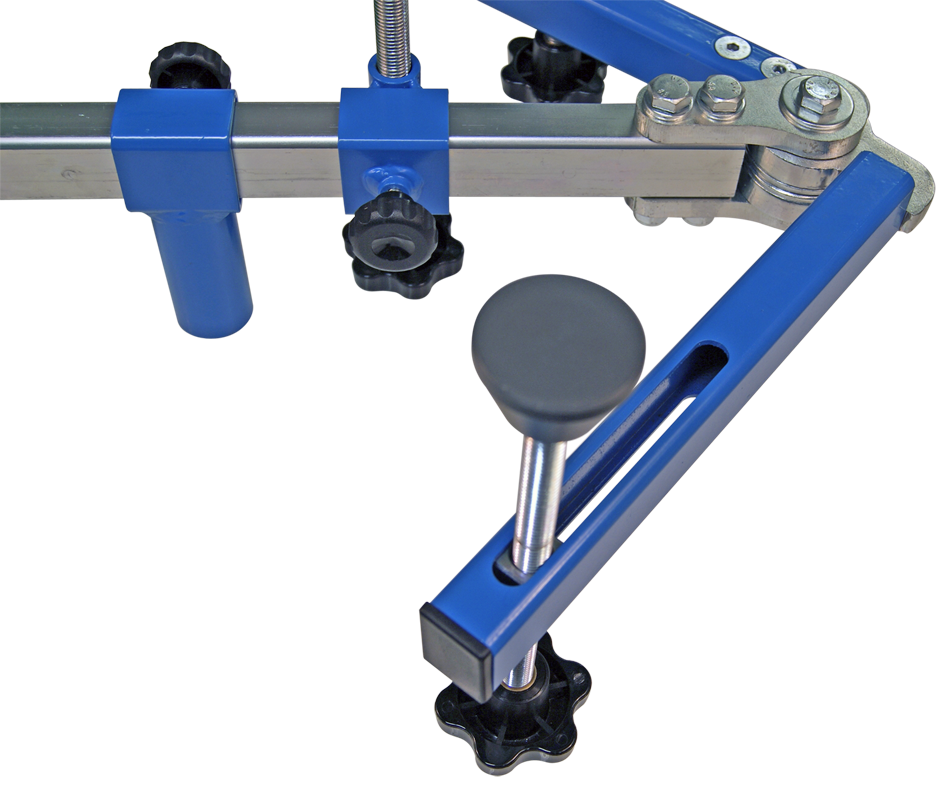

  • The rear support arms can be positioned independently of each other by means of a hinge. Wide long holes in the arms help to find the best position for the support.
  • Incl. A receptacle for standard transmission drives. This means that the beam can also be installed very simply by one person.


  • Maximum support load: 250 kg
  • Variable length from 374 mm to 1,170 mm
  • Telescopic arm: 230 mm extendable
  • Support arms: pivoting 360° rotatable, 122 mm long holes

Technical data

Load capacity [kg] 250
Length [mm] 800
Width [mm] 0.20000
Height [mm] 0.40000
Weight [kg] 12.90700

More images

Detailed images

Application images

Spare and wear parts

Item no. variant Name
26596L-2 - Handle
26596L-3 - Handle
