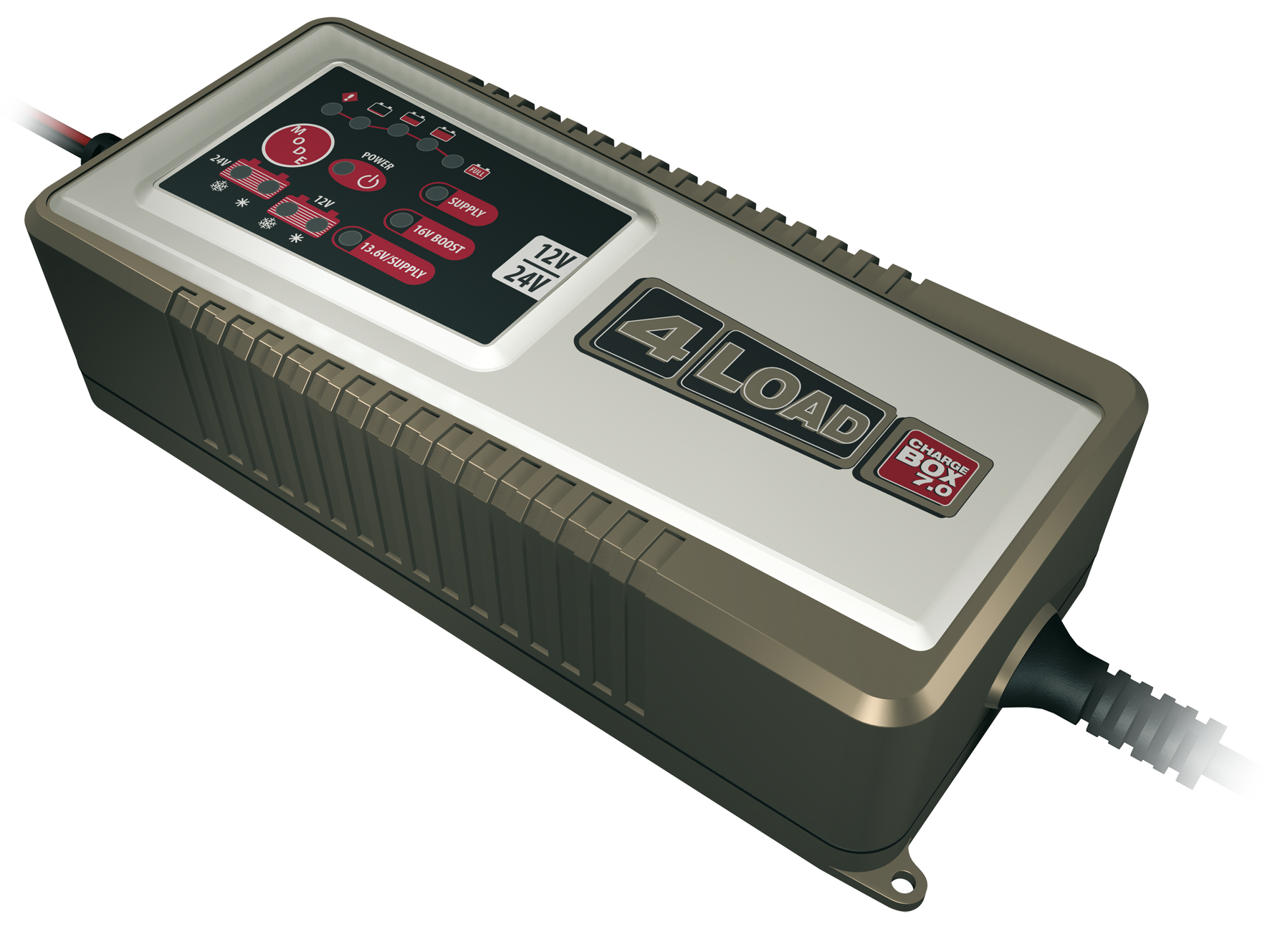

Battery charger Charge Box 7.0


Item no.: 34070L
EAN: 4260173030037


Information about the product

Description

Fully automatic process-controlled charger, especially suitable for mobile homes, buses, agricultural machinery, boats and rehabilitation vehicles for capacities from 14 Ah to 230 Ah and from 14 Ah to 120 Ah.
The Charge Box 7.0 can be switched from 12 V to 24 V.

  • Pulse charge + maintenance charge + permanent charging function

Delivery:

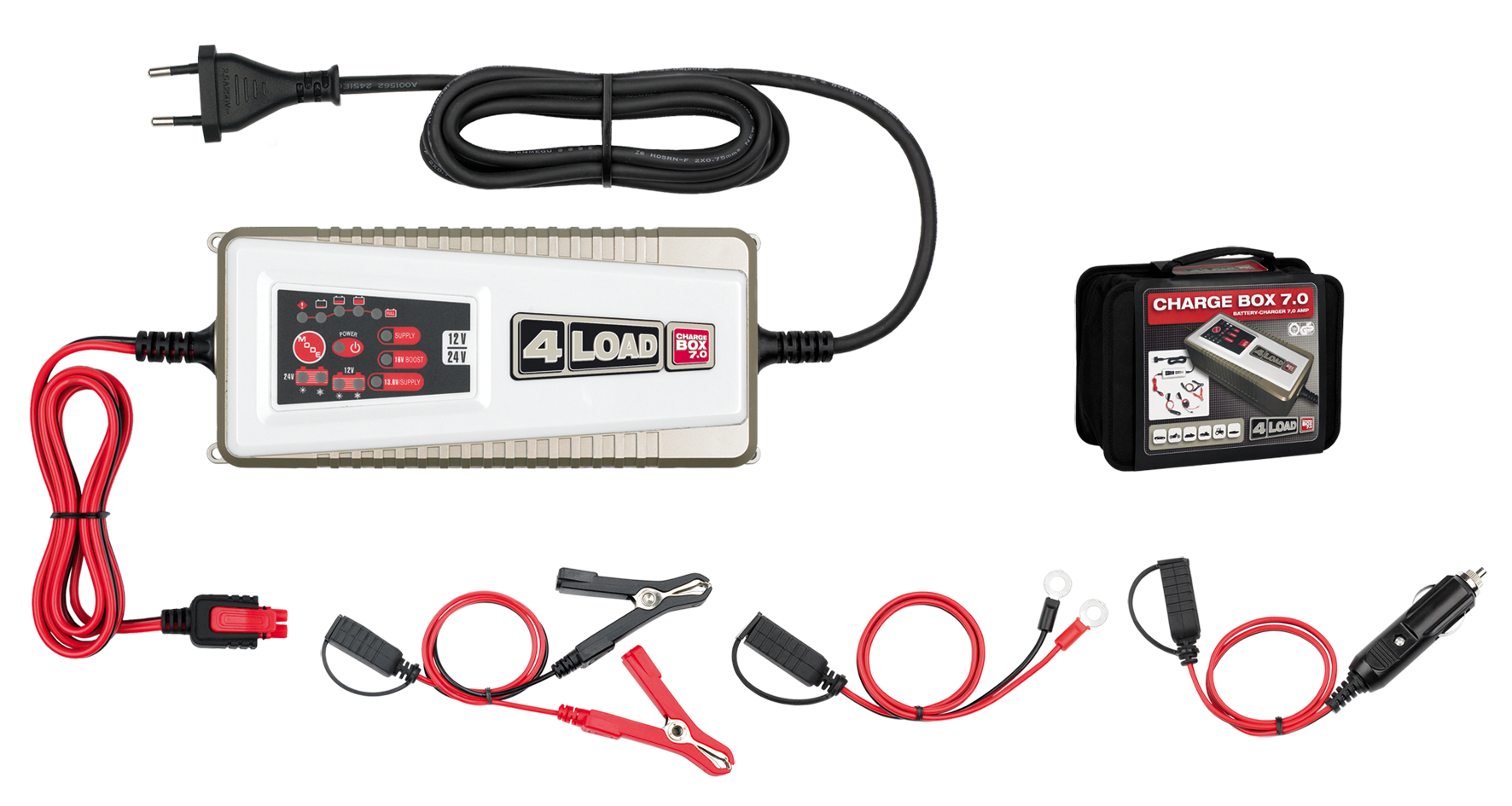

Charge Box 7.0 with adaptor cable (pole clamps, lugs, cigarette lighter) and pocket.

Technical data

Length [mm] 295
Effective charging current [A] 1,5
Effective charging current [A] 3,5
Effective charging current [A] 5
Effective charging current [A] 7
Charging Voltage [V] 14,4
Charging Voltage [V] 14,7
Mains voltage (AC) [V] 230 V
Charging Voltage [V] 28,8
Charging Voltage [V] 29,4
Width [mm] 200
Height [mm] 105
Battery capacity from [Ah] 14
Battery capacity to [Ah] 230
Quality Premium
Protection Type (IP Code) IP 65
Weight [kg] 1.39000
Charger Cable Length [m] 1,8
Mains Cable Length [m] 2
Ambient temperature from [°C] -20
Max. ambient temperature to [°C] 50

More images

Detailed images

Application images

Scope of delivery

Item no. variant Name Quantity
34500L - adapter cable pole clamps 1
34520L - adapter cable cigarette lighter 1

Accessories

Item no. variant Name
34521L - adapter cable 12V DIN
